I. Product Overview

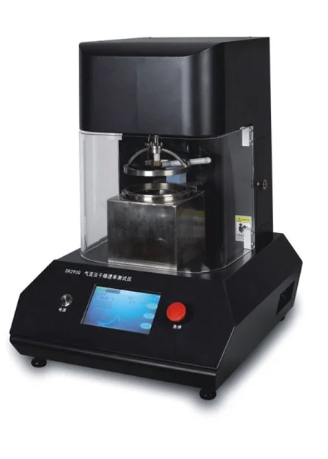

The Textile Drying Time Tester is a precision instrument designed to measure the evaporation rate and drying time of textiles under controlled environmental conditions. It evaluates moisture absorption, drying efficiency, and fabric resilience, critical for quality assurance in textile manufacturing and product development.
- Type: Environmental testing chamber with humidity/temperature control
- Key Metrics:
- Drying Time (minutes)
- Moisture Content (% by weight)
- Evaporation Rate (g/min/m²)
- Sample Size: Up to 500×500mm (adjustable clamping frame)
- Applications: Textile manufacturing, sportswear R&D, waterproof fabric testing
II. Technical Specifications
| Paramètres |
Specifications |
| Temperature Range |
20°C–60°C (±0.5°C accuracy) |
| Humidity Control |
30%–90% RH (programmable) |
| Drying Mechanism |
Airflow circulation (0.5–2.5 m/s) + infrared heating |
| Moisture Detection |
Capacitive moisture sensor (±0.1% accuracy) |
| Power Supply |
220V/50Hz, 1.8kW |
| Dimensions |
1200×800×1500mm (L×W×H) |
III. Key Features
- Multi-Test Modes:
- Static Drying: Fixed environmental conditions
- Dynamic Drying: Simulates body movement with airflow
- Rain Simulation: Water spray module for waterproof testing
- Advanced Features:
- Real-time moisture mapping (thermal imaging)
- AI-based drying prediction model
- Batch data comparison (Excel/PDF export)
- Automation:
- Auto-reset system post-test
- Motorized humidity control
- Self-cleaning condensate drainage
IV. Compliance Standards
- ISO 11092 (Textile evaporative resistance)
- ASTM D737 (Air permeability and drying correlation)
- AATCC 195 (Moisture management properties)
- GB/T 12704-2019 (Chinese textile drying standard)
V. Applications
- Quality Control: Batch testing of sportswear moisture-wicking performance
- R&D: Developing quick-dry synthetic fabrics
- Forensic Analysis: Evaluating fabric degradation from water exposure
- Textile Education: Training on drying mechanism principles
Standard Operation Workflow:
- Sample Preparation: Cut 100×100mm specimens
- Calibration: Reference sample validation
- Testing: Start cycle with predefined humidity/temperature
- Analysis: Generate drying curve and moisture loss graph
- Cleaning: Auto-drain condensate reservoir
Safety Precautions:
- Avoid contact with heated surfaces
- Use grounded power supply only
- Maintain 50cm clearance from airflow vents
