AATCC KMS-M6 Washer, KMS-M6D Dryer

I. Product Overview

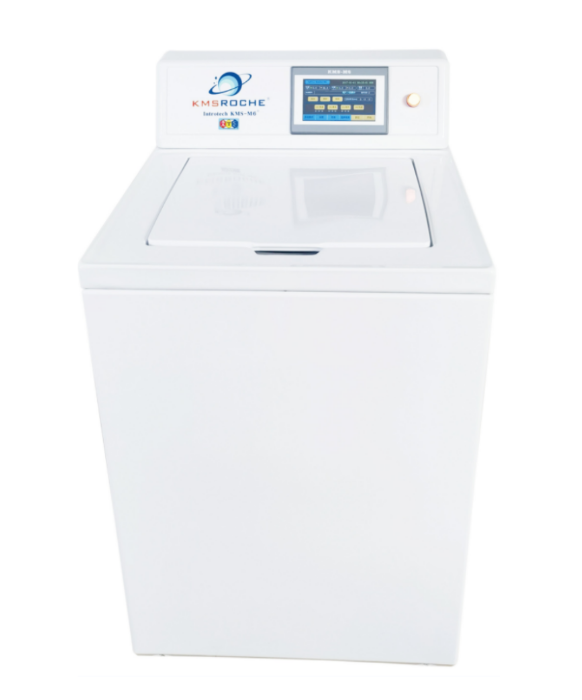

The AATCC KMS-M6 Washer & KMS-M6D Dryer are precision textile testing instruments designed to evaluate fabric durability, colorfastness, and dimensional stability under controlled washing and drying conditions. These machines comply with AATCC Standard Test Method M6, simulating industrial laundering processes to assess textile performance in real-world applications.

• Type: Stackable washer-dryer system for textile testing
• Key Metrics:
  • Colorfastness (ΔE CIELAB)
  • Shrinkage Rate (%)
  • Fiber Breakage Count
• Capacity: 5–10kg per cycle (adjustable load)
• Applications: Garment manufacturing, textile R&D, quality control

II. Technical Specifications

Paramètres	KMS-M6 Washer	KMS-M6D Dryer
Temperature Range	20°C–95°C (±1°C)	30°C–80°C (±1°C)
Cycle Types	Delicate, Normal, Heavy Duty (AATCC M6)	Tumble Dry, Air Fluff (AATCC 133)
Water Consumption	15L/cycle	Not applicable (dry cycle)
Spin Speed	800–1200 RPM	800 RPM (low-speed tumbling)
Power Supply	220V/50Hz, 1.5kW	220V/50Hz, 1.2kW
Dimensions	600×600×1100mm	600×600×1000mm

III. Key Features

• Integrated Testing System:
  • KMS-M6 Washer: Simulates industrial wash cycles with programmable detergent injection
  • KMS-M6D Dryer: Features airflow adjustment for colorfastness evaluation
• Advanced Controls:
  • 7-inch touchscreen interface
  • 100 pre-programmed AATCC/ISO test cycles
  • Real-time vibration monitoring
• Compliance:
  • AATCC M6 (Colorfastness to laundering)
  • ISO 105-C06 (Textile colorfastness)
  • ASTM D4685 (Washer-dryer testing)

IV. Applications

1. Quality Control: Batch testing of dyed fabrics for commercial use
2. R&D: Developing wrinkle-resistant and color-retaining textiles
3. Education: Training on textile care labeling compliance
4. Forensic Analysis: Evaluating garment damage from improper laundering

Standard Operation Workflow:

1. Sample Preparation: Cut 100×100mm specimens
2. Washer Setup: Select cycle (e.g., AATCC M6-2013)
3. Dryer Setup: Adjust airflow and temperature
4. Cycling: Run 5–10 consecutive wash/dry cycles
5. Analysis: Measure color change via spectrophotometer

Safety Precautions:

• Load balance required (±50g tolerance)
• Avoid overloading detergent compartment
• Use heat-resistant gloves during operation

* AATCC-certified test protocols * Water-efficient closed-loop system * Vibration-dampening frame * Includes 5-year calibration service * Stackable design saves lab space ​**Technical Highlights**​ - ±0.5 ΔE color accuracy (NIST-traceable) - 100% cotton-to-synthetic compatibility - Auto-detect load size and adjust water levels - WiFi data export to cloud platforms - Energy-saving eco-mode (30% power reduction)
