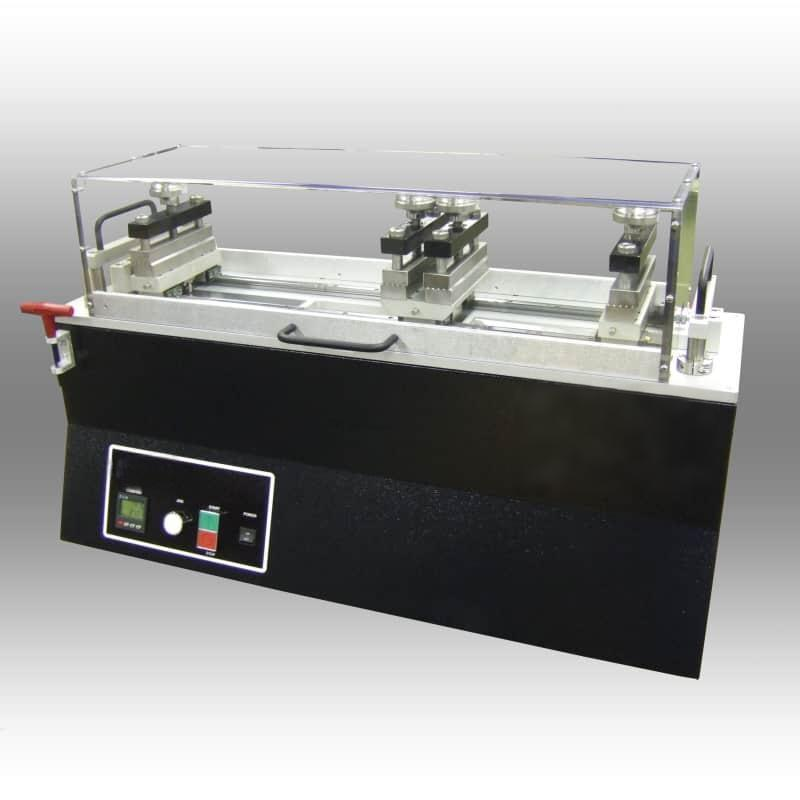

SCHAP Seam Fatigue Tester for Textile & Apparel Durability

Standard

• ISO 13935-1/2 (Textiles – Seam Fatigue Testing for Woven Fabrics)
• ASTM D1683 (Standard Test Method for Failure in Sewn Seams of Woven Apparel Fabrics)
• AATCC 136 (Bonding Strength of Fusible Interfacing in Garments)


Product Advantages

1. Precision Seam Fatigue Analysis
   • Dual-axis motion system (0–50 mm stroke, 1–5 Hz frequency) replicates real-world bending and stretching.
2. Universal Material Compatibility
   • Tests woven, knitted, and technical fabrics, including leather, denim, and coated materials.
3. Automated Cycle Testing
   • Programmable cycles (1–999,999 strokes) with automatic failure detection (e.g., seam breakage).
4. User-Centric Design
   • 7-inch touchscreen interface with multilingual support (English, Spanish, French, Chinese) and one-touch test start.
5. Modular Clamping System
   • Quick-release fixtures for flat seams, curved seams, and buttonholes.

Product Features

• Testing Modes:
  • Dynamic Stretch: Simulates body movement (e.g., knee bends, elbow flexing).
  • Cyclic Bending: Replicates folding during storage or washing.
• Real-Time Monitoring:
  • High-resolution force sensor (±0.01 N accuracy) and displacement encoder capture seam degradation.
• Data Management:
  • Cloud-compatible software stores 100,000+ test results and generates ISO/ASTM/AATCC-compliant reports.
• Safety & Compliance:
  • Overload protection, emergency stop, and CE/UL certification for laboratory safety.

Paramètres techniques

Accessories Included

1. Testing Clamps: 4× universal fixtures for flat seams, curved seams, and buttonholes.
2. Calibration Kit: Force sensor, displacement encoder, and NIST-traceable certification.
3. Sample Templates: 10× pre-cut patterns for standard seam types (e.g., jeans, jackets).
4. User Manual: Multilingual guide (English, Spanish, French, Chinese) with maintenance tips.
5. Safety Gear: Heat-resistant gloves, face shield, and emergency eyewash station.

Ideal For:

• Garment manufacturers (denim, outerwear, sportswear QC)
• Textile mills (fabric seam strength validation)
• Retail brands (apparel durability testing)
• Third-party labs (ISO/ASTM/AATCC certification)
