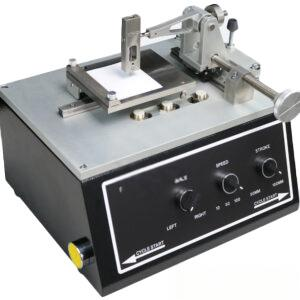

Nissan Scratch Tester

Standard

ASTM D7027 (Standard Test Method for Scratch Resistance of Polymeric Coatings and Plastics)

ISO 1518 (Paints and Varnishes — Determination of Scratch Resistance)

JIS K 5600-5-6 (Scratch Hardness Test for Coatings)

Product Advantages

Precision Scratch Analysis

Proprietary load cell technology (±0.01 N accuracy) captures micro-scratch behavior, critical for coatings and thin films.

Multi-Material Compatibility

Tests metals, polymers, ceramics, and coated surfaces with adjustable speed (1–200 mm/s) and load (0.5–50 N).

Automated Testing Protocols

Pre-loaded ASTM/ISO/JIS test modes with AI-driven load ramp and scratch pattern optimization.

High-Resolution Imaging

Integrated 4K microscope (10–200x magnification) captures scratch morphology in real time.

User-Centric Design

10.1-inch touchscreen interface with multilingual support (English, Japanese, German, Chinese) and one-touch calibration.

Product Features

Testing Modes

Linear Scratch: Single-pass testing for coatings and films.

Reciprocating Scratch: Multi-cycle abrasion for wear simulation.

Progressive Load: Automated load increments (0.5–50 N) for critical failure analysis.

Real-Time Monitoring

High-speed data acquisition (10.000 Hz) tracks friction, load, and displacement simultaneously.

Data Management

Cloud-compatible software stores 50.000+ test results and generates ISO/ASTM/JIS-compliant reports.

Safety & Compliance

Overload protection, emergency stop, and CE/UL certification for laboratory safety.

Paramètres techniques

Accessories Included

Scratch Heads:

5× diamond indenter tips (Rockwell C geometry).

10× spherical stylus (1–10 mm radius).

Calibration Tools:

Load cell verifier, scratch depth gauge, and NIST-traceable certificate.

Sample Fixtures:

Pneumatic clamps for flat/curved specimens, vacuum chuck for thin films.

Software Suite:

AI analytics platform with scratch simulation, ERP integration, and 8-language report generator.

Safety Bundle:

Emergency stop, acoustic enclosure, and fume extraction port.

Ideal For:

Automotive OEMs (paint, trim, and interior coating durability)

Electronics manufacturers (screen protectors, polymer casing testing)

Medical device makers (biocompatible coating scratch resistance)

Research universities (advanced material innovation)
