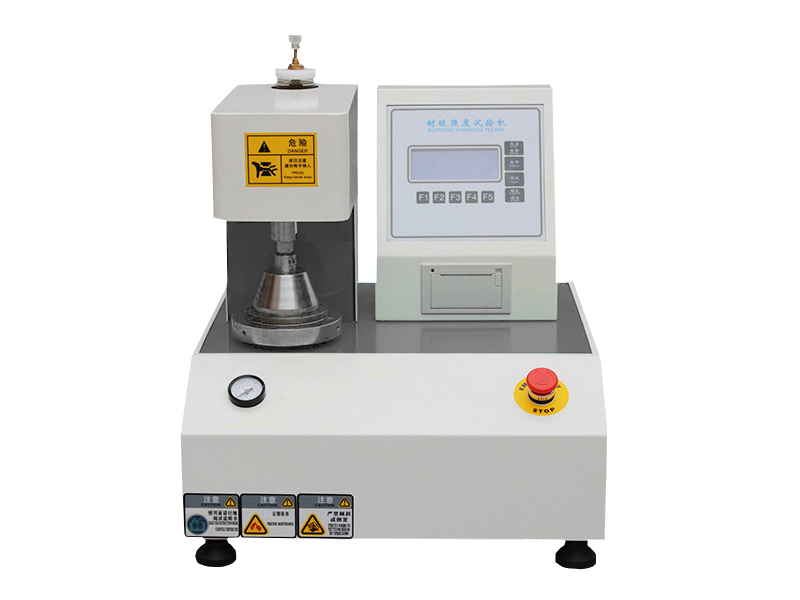

Precision Mullen G229P Pneumatic Bursting Strength Tester.
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
ASTM D3786: Hydraulic bursting strength test method for textiles (Diaphragm method).
ISO 13938-2: Textile bursting characteristics – Air pressure method for bursting strength and expansion.
IWS TM 29: International Wool Bureau Standard for fabric bursting resistance.
EDANA 80.4.2002: Recommended test method for non-woven fabric bursting strength.
NEXT 22: Determination of fabric bursting properties.
GB/T 7742.1: Chinese National Standard for textile bursting strength (Equivalent to ISO 13938-2).
Precision & Speed: Utilizes pneumatic blasting technology to deliver rapid, accurate measurements of bursting strength, height, and force under uniform stress.
Dual Control Modes: Combines manual and automatic operation via intelligent algorithms, ensuring flexibility for diverse testing needs.
User-Centric Design: Features a color LCD touchscreen with intuitive software for real-time data display, analysis, and report generation.
Multi-Industry Applicability: Ideal for textiles, leather, paper, non-wovens, and other materials requiring bursting resistance evaluation.
Safety & Compliance: Built-in multi-directional safety protections and adherence to global standards reduce operational risks.
High-Pressure Capacity: Maximum pneumatic pressure of 1.5MPa accommodates demanding testing requirements.
Pneumatic Blasting Principle: Generates controlled air pressure to simulate real-world stress conditions, ensuring reliable and repeatable results.
Smart Touch Control: Color LCD interface with dual-button start and foot-switch compatibility for ergonomic operation.
Comprehensive Software: Integrates data acquisition, storage, analysis, and printing functions. Supports export of test reports in multiple formats.
Adjustable Pressure Range: Wide pressure adaptability (0–1.5MPa) suits various material thicknesses and strengths.
Safety Mechanisms: Emergency stop, overload protection, and automatic pressure release prevent equipment damage and operator injury.
Compact & Durable: Robust construction with minimal footprint (450mm × 350mm × 500mm) ensures long-term reliability.
| Paramètres | Spécification |
|---|---|
| Max. Bursting Force | 1.50 MPa |
| Test Modes | Manual / Automatic / Optional (Dual-Button + Foot Switch) |
| Accuracy | ±0.2% F.S. |
| Bursting Surface Diameter | 30 mm / 30.5 mm / 31 mm / 35.7 mm / 79.8 mm / 112.8 mm (Optional) |
| Bursting Membrane Size | 155.8 mm |
| Pressurization Method | Pneumatic Air Pressure |
| Pressurization Rate | 1–100 kPa/min (Adjustable) |
| Sample Fixing | Pneumatic Clamp |
| Output Forms | Printout / Display / Real-Time Graphic Display / Online Communication |
| Report Format | Bursting Strength, Film Pressure, Bursting Height, Bursting Time, Statistical Analysis |
| Bursting Height Accuracy | 70 ±1% |
| Power Supply | AC 220V ±10%, 50Hz (Customizable 110V/60Hz) |
| Dimensions | 800mm × 700mm × 1100mm |
| Net Weight | 115 kg |
| Software Features | Real-Time Data Acquisition, Statistical Analysis, Exportable Reports (PDF/Excel) |
| Safety Protections | Emergency Stop, Overload Protection, Auto Pressure Release |
