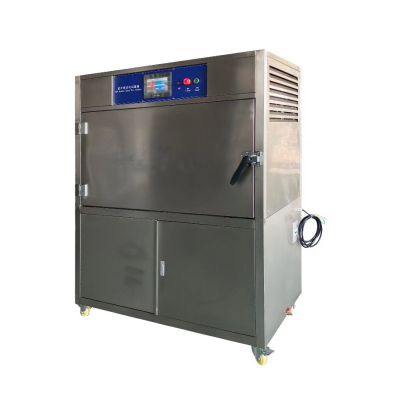

UV Lamp Aging Test Tester

Precision UV Aging Tester for Material Durability.

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Contenu

timg

Standard

  • JTG E50 T1164: Testing methods for geosynthetics in highway engineering.
  • GB/T 14522-93: Accelerated weathering tests for plastics, coatings, and rubber in industrial machinery.
  • GB-T16422.3-1997 & ISO4892-3:1994: Laboratory light source exposure using fluorescent UV lamps.

Product Advantages

  1. Cost-Efficient Performance: Low operational and maintenance costs, paired with intuitive operation for seamless integration into any lab.
  2. Advanced Automation: Programmable controller enables unattended test cycles with precise timing and automatic transitions between light, condensation, and dark phases.
  3. Consistent & Repeatable Results: Stable UV output and tight temperature uniformity (±3℃) guarantee high repeatability across tests.
  4. Versatile Simulation: Replicates harsh natural climates—UV radiation, humidity, condensation, and thermal cycling—to accelerate aging processes.
  5. Customizable Testing: Optional UV-A340 (315–400nm) or UV-B313 (280–315nm) lamps cater to diverse material requirements.

Product Features

  • Multi-Factor Aging Simulation: Combines UV exposure, high-temperature aging, and condensation cycles to evaluate color fading, strength loss, cracking, oxidation, and adhesion failure.
  • Intelligent Cycle Control: Programmable light/condensation cycles (e.g., 4H/4H or 8H/8H) with a 0–9999h59min timer.
  • Real-Time Monitoring: Digital displays track temperature, humidity, and irradiation intensity during testing.
  • Compact Design: Optimized chamber layout ensures uniform UV distribution and efficient space utilization.
  • Wide Applicability: Ideal for geosynthetics, automotive coatings, plastics, textiles, and rubber products.

Accessories

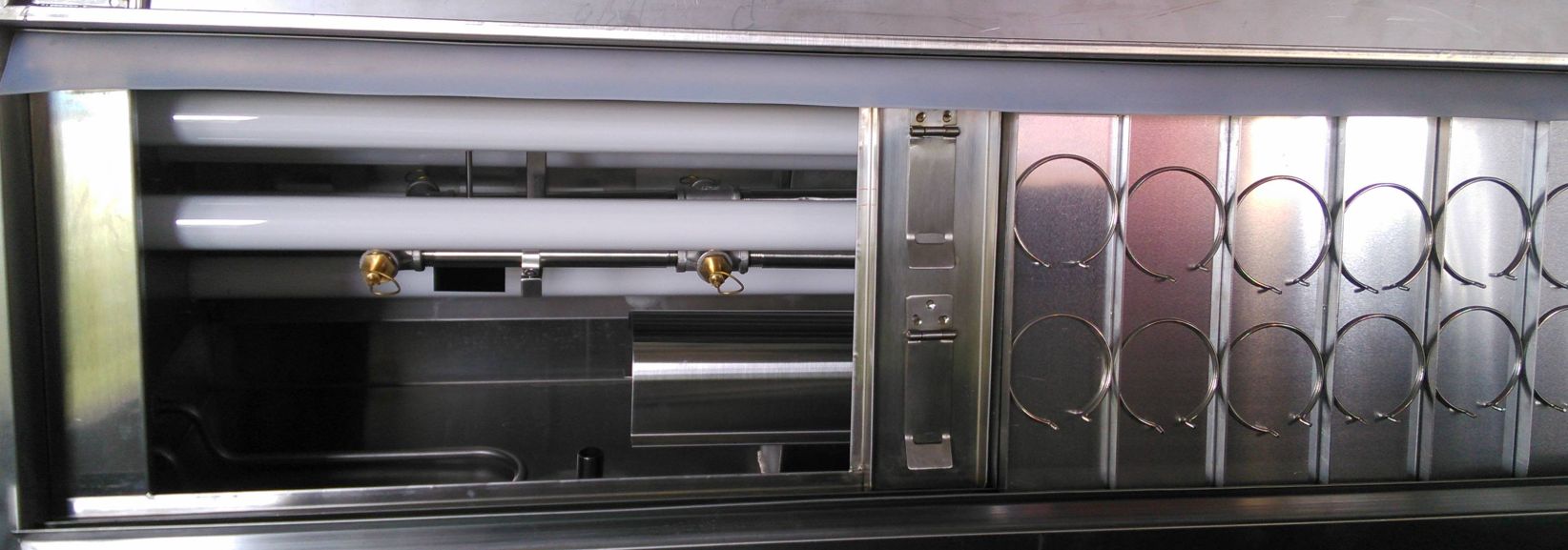

  • UV Lamps: 4pcs UV-A340 or UV-B313 (user-selectable).
  • Sample Holders: Adjustable racks for flat specimens (max. 12 samples).
  • Humidity Sensor: Precision probe for condensation monitoring.
  • User Manual: Multilingual guide (English/Chinese) with safety protocols.
  • Calibration Certificate: Traceable to NIST standards.

Paramètres techniques

ParamètresSpécification
Light Temperature RangeRT +10℃ to 70℃
Condensation Temperature50℃ (steam humidification)
Temperature Uniformity±3℃
Irradiation Intensity0.55 W/m² (at 340nm)
UV Wavelength OptionsUVA (315–400nm) or UVB (280–315nm)
Light/Condensation Cycle0–9999h59min (adjustable)
Lamp Center Distance70mm
Sample-to-Lamp Distance55mm
Control SystemMicroprocessor PID with overheat protection








:


Similar product recommendations

Box-Type UV Aging Test Chamber

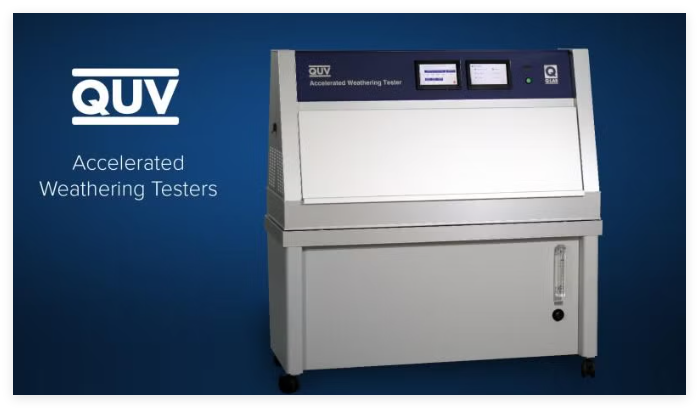

Our UV aging tester has the same performance as the QUV Accelerated weathering tester and is a perfect alternative to the QUV Accelerated weathering tester. We use the same power supply and lamps, the same spectral range, and the parameters and performance are exactly the same as the QUV Accelerated weathering tester.

QUV


Similar product recommendations: Box-Type UV Aging Test Chamber
